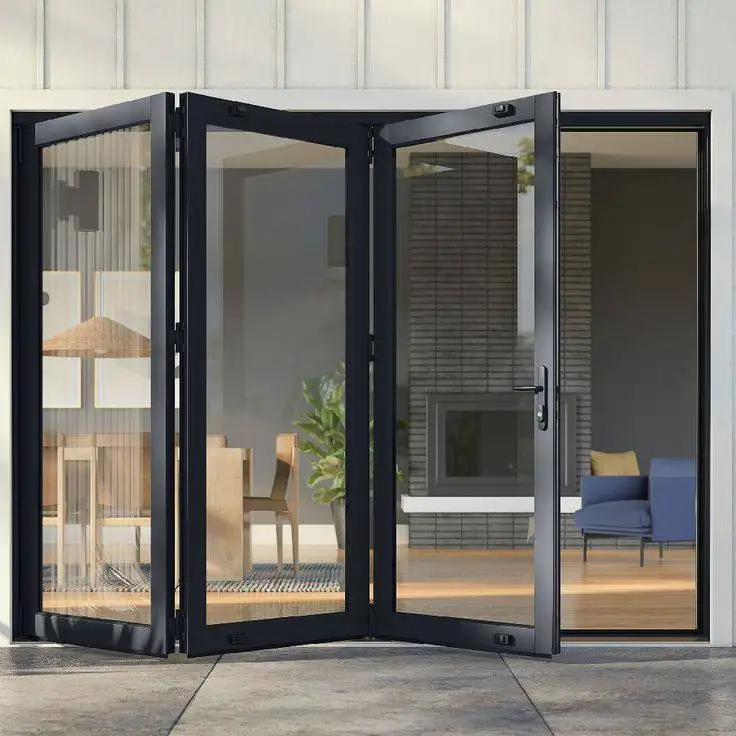

The 50mm Aluminium Sliding Folding Door Series is a high-performance, space-saving door system engineered to provide wide openings, maximum ventilation, and modern aesthetics. With its folding and sliding functionality, it is perfect for creating a seamless transition between indoor and outdoor areas.
| Feature | Specification |
|---|---|
| Profile Width | 50mm (sash) / customizable outer frame widths |
| Material | Virgin Aluminium Alloy 6063-T6 |
| Profile Thickness | 1.8mm – 2.2mm (varies by application and size) |
| Glass Options | Single (6mm, 8mm) or Double Glazing (18mm – 24mm) |
| Finish Options | Powder Coated, Anodized, Wood Finish, PVDF (optional) |
| Opening Style | Folding + Sliding – inward or outward fold |
| Hardware | SS304/316 heavy-duty hinges, rollers & multi-point locking handles |
| Track Options | Bottom-loaded or top-hung with threshold or flush track |
| Max Panel Size (each leaf) | Up to 1000mm width x 3000mm height |
| Max Panels | 2 to 8+ panels depending on width |
| Sealing System | Dual EPDM gaskets, wool pile seals, interlocking profile system |
| Drainage System | Concealed drainage channels with water outlet slots |
